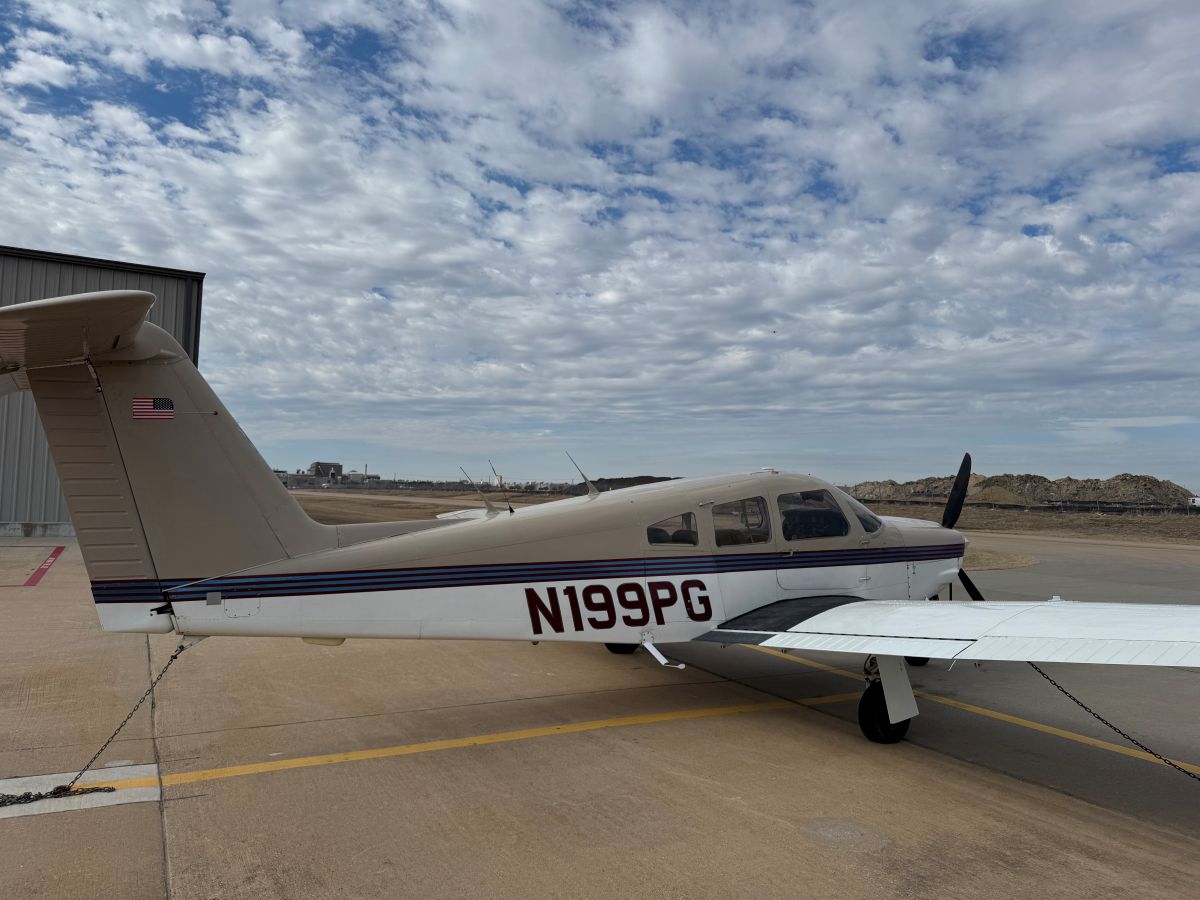

N199PG

Type: 1982 Piper Arrow IV

• Type Designation: PA28RT
• Model Info: PA-28RT-201
• 200 HP Lycoming IO-360-C1C6
• Fuel Capacity: 72 gal
• Range: 800 miles
• Max. Gross Weight: 2750 lbs.
• Useful Load: 939 lbs.

W&B sheet

Equipment List:

• Bendix King KMA-30 Audio Panel
• Dual Garmin G5 Attitude and DG displays w/ sensor- TAS, OAT, and wind direction
• Avidyne IFD 540 GPS w/ Nav/Comm
• Garmin GFC 500 2-axis auto pilot with ESP
• KX-155 Comm/Nav Radio
• KT-74 Transponder w/ADSB Out

• Equipment Code: S G D R B
• Surveillance: E, B1, SUR/260B

• ICAO PBN: B2 C2 D2
• Mode-S Transponder hex code A18AE6

*PIC responsible for flight plan coding. Coding can vary depending on type of flight, route, inop components and other factors.

Checkout Req:

• Private Pilot
• 150 Hours total time
• 25 Hours retractable gear
• Checkout in the make and model with an approved N199PG TFC CFI prior to solo operations
• In lieu of 25 hour retract time, 5 hours of dual instruction with a TFC approved CFI
• Approved CFI's - Gary Cooper, Luke Hornaday

Club Checkout - References:

• N199PG Operating Tips
• N199PG Knowledge Quiz

Club Currency Requirement:

All users of TFC retractable gear airplanes must have 3 takeoffs and landings in retractable gear aircraft within the past 90 days or a new checkout by TFC CFI.

Manuals:

• Piper Arrow IV POH and AFM - including:
  • Garmin GFC 500 Autopilot with ESP AFMS STC SA01866WI
  • Garmin G5 EFI STC 01818WI
  • Avidyne IFD 5xx AFMS STC SA00343BO
  • SureFly Single Electronic Ignition Module (fixed timing) [see log entry update]
  • McCauley Triblade Prop STC SA129CH

Plane Photos:

• N199PG Panel Photos
