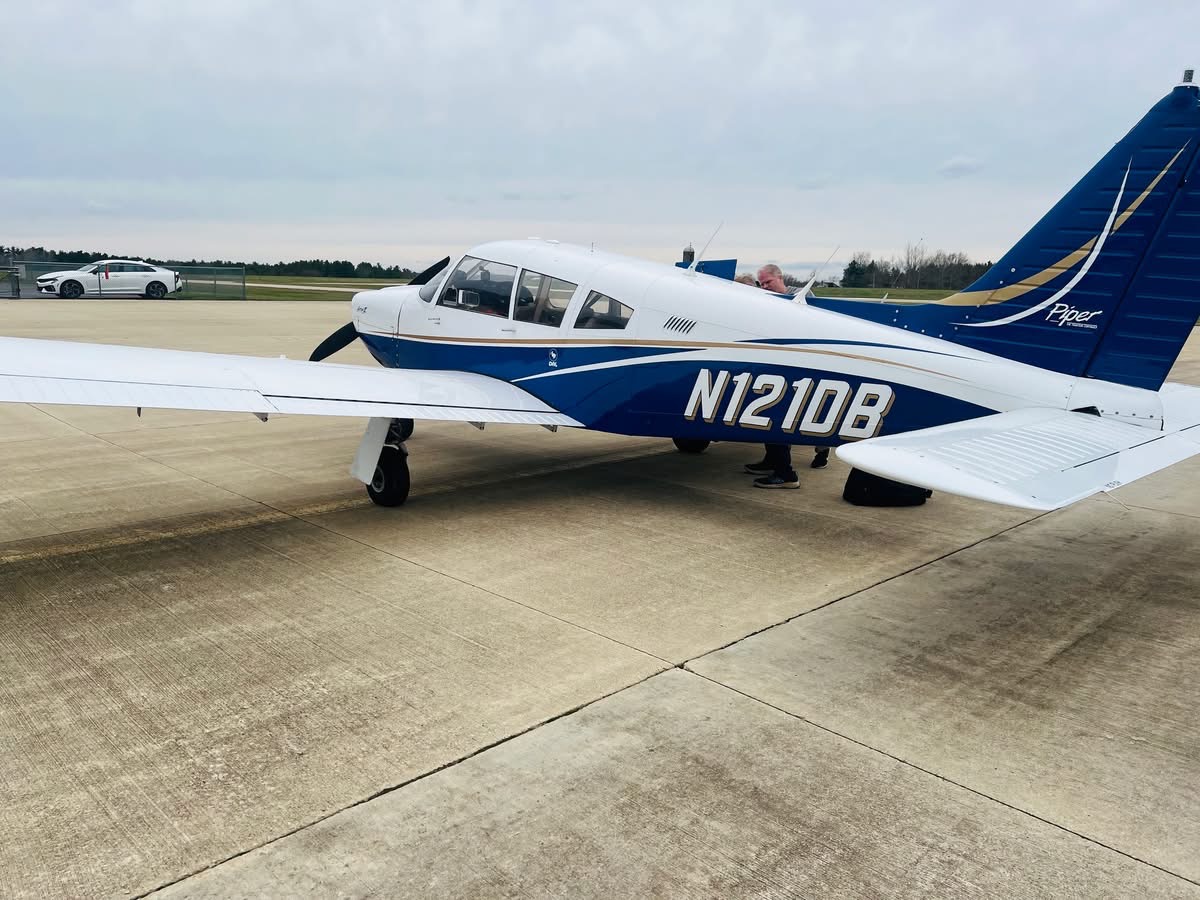

N121DB

Type: 1972 Piper Arrow II

• Type Designation: PA28R
• Model Info: PA-28R-200
• 200 HP Lycoming IO-360-C1C
• Fuel Capacity: 48 gal
• Range: 680 miles
• Max. Gross Weight: 2,650 lbs.
• Useful Load: 1038 lbs.

Weight and Balance online calculator

W&B sheet

Equipment List:

• Bendix King KMA-30 Audio Panel
• Dual Garmin G5 Attitude and DG displays w/ sensor- TAS, OAT, and wind direction
• JPI EDM 830 Engine Monitor
• Avidyne IFD 540 GPS w/ Nav/Comm
• Garmin SL-30 Nav/Comm #2
• Garmin GFC 500 2-axis auto pilot with ESP
• KT-74 Transponder w/ADSB Out
• KGX-130 ADSB-In Reciever
• KI-204 VOR Indicator
• AV8 Inspector CO monitor

• Equipment Code: S G D R B
• Surveillance: E, B1, SUR/260B

• ICAO PBN: B2 C2 D2
• Mode-S Transponder hex code A057B6

*PIC responsible for flight plan coding. Coding can vary depending on type of flight, route, inop components and other factors.

Checkout Req:

• Private Pilot
• 150 Hours total time
• 25 Hours retractable gear
• Checkout in the make and model with an approved TFC CFI prior to solo operations
• In lieu of 25 hour retract time, 5 hours of dual instruction with a TFC approved CFI
• Approved CFI's - Gary Cooper, Brian Hanchey, Richard Klein

Club Checkout - References:

• PA-28R-Quiz
• Checkout Focus Areas - Gear, Fuel, Electrical
• PA-28R-200 Operating Tips for Checkout

Club Currency Requirement:

All users of TFC retractable gear airplanes must have 3 takeoffs and landings in retractable gear aircraft within the past 90 days or a new checkout by TFC CFI.

Plane Photos:

• N121DB Panel Photos
